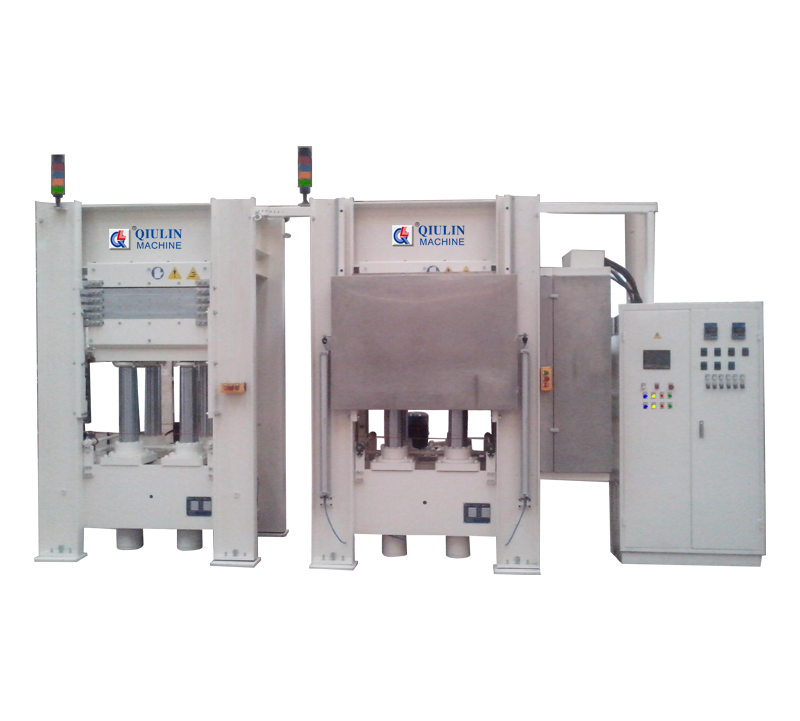

1、热压机 Hot press
BY212 x 3/15 (5)H2RC
(1)公称压力 Total pressure:1500kN
(2)工作层数 Working layers:5
(3)热压板数量及规格 Platen No.& size: 6-1000 x 760 x 60mm
(4)热压板间距 Opening: 120mm
(5)进料方向 Loading direction: 1000mm
(6)热板最高温度 Max temperature: 2500C
(7)加热方式 Heating way:电热管直接加热(Direct heating by electric heating tube)
(8)加热时间 Heating time:大约(about) 15-30 min
(9)闭合速度Closing speed: 18.5mm/s
(10)开启速度Opening speed: 15mm/s
(11)装机功率Installation power: 126.9kW
(12)供电制式Voltage: 3PE 380V 50Hz
(13)外形尺寸(L x W x H): 2260 x 1390 x 2800mm
(14)重量Weight:约(about)6400Kg
2、冷压机 Cooling press
BY212 x 3/15 (5)H2RC
(1)公称压力 Total pressure:1500kN
(2)工作层数 Working layers:5
(3)热压板数量及规格 Platen No.& size: 6-1000 x 760 x 60mm
(4)热压板间距 Opening: 120mm
(5)进料方向 Loading direction: 1000mm
(6)冷却方式Cooling way: 水冷(Water)，冷却系统用户自配(Cooling system prepared by the user)
(7)闭合速度Closing speed: 18.5mm/s
(8)开启速度Opening speed: 15mm/s
(9)装机功率Installation power: 126.9kW
(10)供电制式Voltage: 3PE 380V 50Hz
(11)外形尺寸(L x W x H): 2260 x 1390 x 2800mm
(12)重量Weight:约(about)6400Kg
